Optimise print precision, increase printing speeds and expand operational capability with the next-generation CL4NX Plus industrial printer from SATO.
The innovative label printer represents the cutting-edge evolution of SATO industrial thermal printers, which present a complement of consistent practical benefits, designed to integrate seamlessly into existing workflows.
The machine enables the reduction of labour costs and down time as a result of fewer media changes. as well as benefitting from format flexibility. With enhanced media options, the printer can reduce existing label sizes, saving costs and providing a significant boost to value chain sustainability.
Applications
- Healthcare
- Retail
- Food Industry
- Automotive
- Manufacturing
Specifications
- Print Method: Direct Thermal / Thermal Transfer
- Print Width:104 mm (4.09")
- Print Resolution:203, 305 & 609 dpi (auto switch)
- Print Speed:152 mm or 6" per second/ 355 or 14 " per second
- Screen: TFT Full Colour LCD, 3.5 "(320(RGB)*240)
- Language: 47 print & 30 display languages
- Interfaces: USB 2.0 (Type A & B), Ethernet (IPv4/v6), RS232C, IEEE1284, EXT, Bluetooth Ver. 3.0*2, NFC, External I/O
- Memory: On-Board Memory (Flash ROM) 40 MB, SD RAM 64 MB
- Emulations: Auto detect - SZPL, SDPL, SIPL, STCL, SEPL
*BARCODE VALIDATOR IS FACTORY INSTALL ONLY ON NEW PRINTERS. NOT AVAILABLE FOR CL6NX PLUS OR RFID MODELS.*
SATO’s integrated Barcode Validator for the CL4NX Plus Series printer offers an affordable solution that allows users to check the accuracy of printed 1D and 2D barcode symbologies. The Barcode Validator provides customers with reliable results needed to comply with quality assurance standards or mandated compliance requirements. Simple configuration makes it easy to setup and offers seamless printing operation to SATO’s CL4NX Plus printers.
The integrated solution ensures the integrity of barcode data regardless of whether using printer emulation languages or even if printed out as a graphic image, such as printing from Windows applications. To reduce the risk of applying poor quality labels, the CL4NX Plus Barcode Validator has an overstrike feature to retract and void the label if the barcode does not scan. It can be configured to automatically reprint the label or stop printer operation altogether, thus reducing label waste due to printing issues. For companies who have labeling mandates, you can use the built-in logging option to capture printed label information and create an audit file that can be uploaded to host systems for archiving purposes.
KEY FEATURES
- Integrated Scanner
- Checks the readability and data of printed 1D and 2D Barcodes
- No additional software needed- Plus & Play Integration
- Log files for archiving and quality Assurance Audits
Key Benefits
- Aethetically pleasing stable device
- Low cost, affordable validation solution
- Eliminates chargebacks from unscannable barcode labels
- Ensures correst data printed by encoding an audit plan

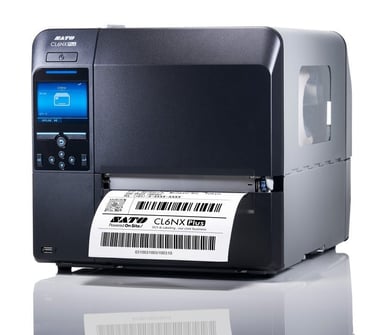

CL6NX Plus
Outperforms the competition with exceptional features
SATO's CL6NX Plus printer sets a new and innovative industry standard for ease of use, intelligence, on-board industry emulations, connectivity, speed of processing data streams, user activity interface, and so much more.
Ease of Use
Built with integrity and engineered for both operator ease and productivity, the CL6NX Plus represents the next evolution in this product series and is designed to exceed expectations for modern printing technology. It supports media rolls up to 8.6-inches (220 mm) in outer diameter and ribbons up to 1,968 feet (600 m), while its Smart Print Head technology tracks usage specific to the installed print head. The platen roller with the Pure Line indicator provides a visual cue for wear, enabling users to proactively replace this critical component. With regard to consumable components, the CL6NX Plus remains one of the most user-friendly industrial desktop printers, allowing tool-free replacement of both the print head and platen roller.
Micro Label Print Mode
The Micro Label Print Mode provides higher print accuracy for small pitch labels and can dispense labels as small as 10 mm. With SATO Application Enabled Printing (AEP), users can create custom standalone applications that run directly on the printer independent of host software. Peripheral devices such as keyboards, weighing scales and barcode scanners can be connected directly to the printer for seamless data input.
RFID
Businesses can save labor, speed up their operations and enjoy many advantages from using the CLNX Plus RFID Series of printers. The CL6NX Plus can print text and barcodes on UHF labels and tags, and encode data in their embedded chips at the same time. Equipped with an on-screen menu, it eliminates the need for manual antenna adjustment. Additionally, the printer can verify RFID chip readiness before encoding, helping prevent failures.
Up to 10 frequently used settings can be registered for writing to and reading from different types of labels or tags. By selecting a stored setting, users can easily encode multiple types of media with a single printer. Compatibility with specialty RFID labels and tags, including those designed for use on metal surfaces, further broadens application possibilities.
60° Wide Print Head Opening with Pure Line Platen Roller
The 60° head opening allows easier access for media loading and routine maintenance. The Pure Line wear indicator on the platen roller offers a visual guide to help determine when replacement is needed.
Micro Label Print Mode
A higher tolerance of +/-0.7 mm improves print image accuracy when using small labels (less than 53 mm in length).
Fast batch printing
The printer supports print speeds of up to 10 ips.
UHF RFID module
CL6NX Plus can print text and barcodes on UHF labels and tags and encode data into their embedded chips at the same time.
SATO AEP
SATO AEP (Application Enabled Printing) is a powerful onboard intelligence that enables customization of the printer operation to significantly simplify labeling processes and reduce business costs.
PDF Direct Print
SATO's PDF Direct Print enables swift and accurate label printing directly from PDF files, eliminating the need for intermediate software.
SATO Online Services (SOS)
By monitoring your printers, 24/7 via the cloud, SATO Online Services (SOS) enable proactive preventative maintenance and help reduce printer downtime by up to 86%.
*Based on survey conducted by SATO in Japan.*
M84 Pro Series
The M84Pro Series - the rugged industrial generation of high performance printers with high resolution capabilities.
The M84Pro offers user configurable print resolutions of 203, 305, and 609 dpi. The M84Pro’s powerful electronics provide high throughput and print speeds of 10, 8 and 6 ips at 203, 305 and 609 dpi respectively.
APPLICATIONS
- PCB Labelling
- Component Marking
- Ticketing
- Retail Labelling
- Compliance Labelling
- Shipping/Receiving
- Asset Tracking
- WMS
SPECIFICATIONS
- Print Method: Direct Thermal / Thermal Transfer
- Print Width: 4.1" (104 mm)
- Print Resolution: 203, 305 or 609 DPI
- Print Speed: up to 10 IPS
- Plug-in Interfaces: USB, Parallel, Serial, Ethernet, and Wi-Fi
SG112-ex
Demonstrating true SATO innovation, the SG112-ex is designed to save operator time and improve work efficiency in fast-paced production environments. The SG112-ex has a print width of up to 10.5 inches wide at a speed of up to six inches per second.
FEATURES
- Large format Industrial Printer
- 10.5" Print width
- Automatic Label Loading
- Flexible Connectivity with Multiple Standard Interfaces
- Intuitive Multi-Language Display
INDUSTRIES
- Manufacturing
- Transportation & Logistics
- Automative
- Retail
- Utilities
- Supply Chain
- Aerospace
